SFS-20N | CS-Acrovyn | BFM

Column Guards

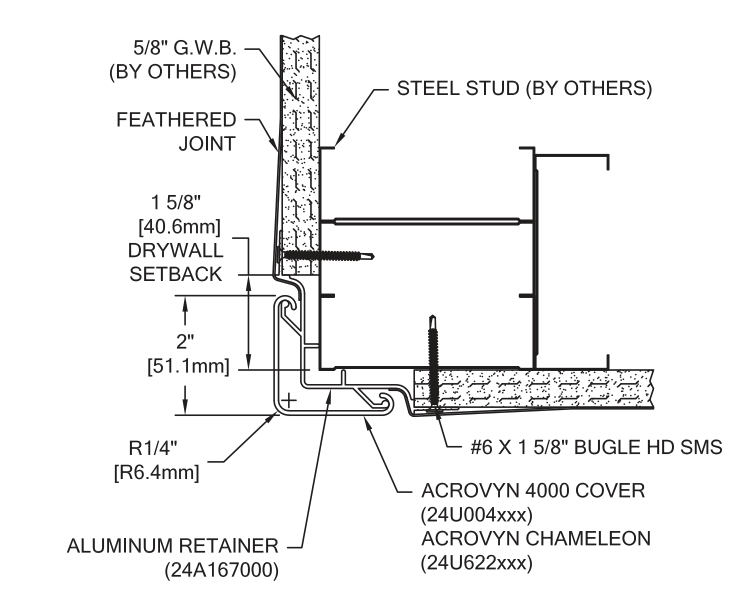

A shock absorbing 90 degree fl ush mounted corner guard featuring 2” Acrovyn legs.

Features

UL Class A/1 fi re rated and labeled
Shadowgrain texture Acrovyn
Engineered PETG free of PVC and PBTs
CA 01350 protocol for low VOC

Product Details

2” (51.1mm) leg
1/4” (6.4mm) radius cover
.078” (1.98mm) thick Acrovyn cover
Continuous aluminum retainer for 5/8” (15.9mm) drywall
Maximum 20’ (6.1m) length; maximum 12’ (6.1m) length for fi re rated
Aluminum base supplied to specifi ed height

Options

Continuous aluminum retainer for 1/2” (12.7mm) drywall
SFS-20RN 1HR - integral fi re barrier for one hour fi re rated installation
SFS-20RN 2HR - integral fi re barrier for two hour fi re rated installation

Similar Models

SFS-10N - 2” (51.1mm) leg; 1 1/4” (31.8mm) radius bullnose cover - 90 degree
FS-20N - 3” (76.6mm) leg; 1/4” (6.4mm) radius cover - 90 degree
FS-10N - 3” (77.6mm) leg - 1” (25.4mm) radius bullnose cover - 90 degree
FSC-25N - 2” (51.2mm) leg; 1/4” (6.4mm) radius cover - end wall

Warranty

5 year product warranty
Chameleon^TM limited lifetime warranty
