C Plank | BFM Ceilings

แบบเส้นตรง เน้นความเรียบง่ายและทันสมัย เหมาะสำหรับพื้นที่ขนาดใหญ่

Benefits

Easy and quick installation.
Enhances the space with a sleek, modern, and open aesthetic.
Effectively conceals the plenum for a clean and polished appearance.
Durable and long-lasting materials for reduced maintenance costs.

Product Information

Material: Aluminum Alloy

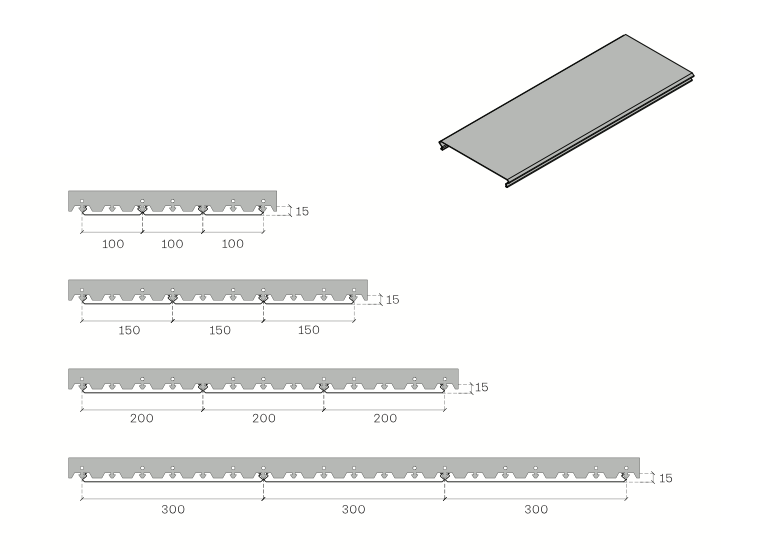

Width (mm): 100 / 150 / 200 / 300
Thickness (mm): 0.6 mm. (W100) / 0.7 mm. (W150,200) / 0.8 mm. (W300)
Length (mm): 3000 – 6000
Paint System: Polyester Powder Coated / PVDF / Wood Effects Available by Request
Fire Performance: ASTM E84 or GB/T8624-2012, GB/T 5464-2010, GB/T14402-2007.

Application

Office
Transport
Retail

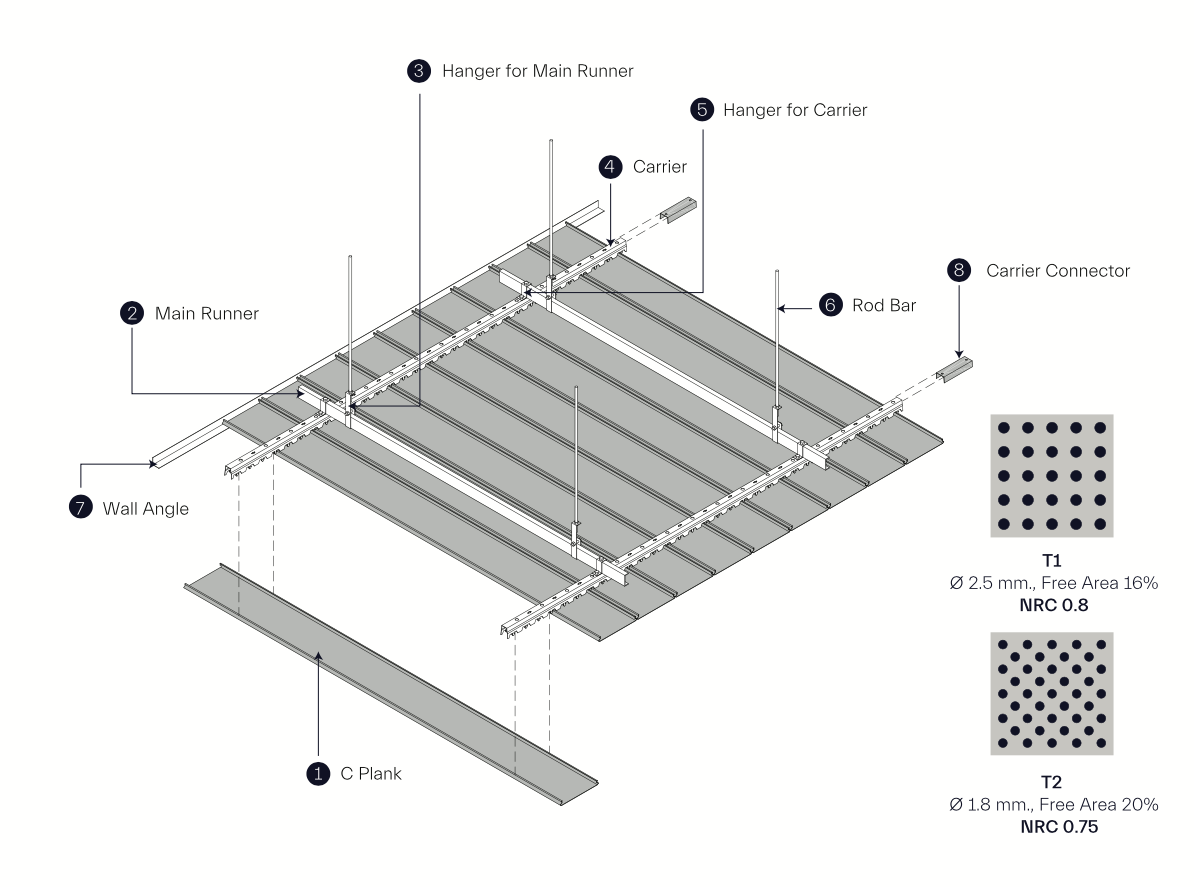

Perforation Patterns / NRC value

Non-Perforated
Ø 2.5 mm, 16% Free Area, Perforated T1 / NRC : 0.8
Ø 1.8mm, 20% Free Area, Perforated T2 / NRC : 0.75

*Perforated panels include acoustical ﬂeece.

‍
