Clip-In | BFM Ceilings

ติดตั้งได้รวดเร็วรวมทั้งยังซ่อนโครง semi concealed และสะดวกในการทำงาน

Benefits

Elegant monolithic appearance for a seamless and sophisticated design.
Concealed suspension system for a sleek and refined aesthetic.
100% downward accessibility with a specialized panel removal tool for effortless maintenance.
Excellent acoustical performance, enhancing sound comfort.
Ideal for spaces with low ceiling voids, maximizing efficiency.
Easy to clean, ensuring long-lasting freshness and hygiene.

‍

Product Information

Material: Aluminum Alloy
Dimensions (mm): 600 x 600 / 1200 x 600 (Other sizes available on request)
Thickness (mm): 0.8 / 1.0
Paint System: Polyester Powder Coated / PVDF / Wood Effects Available by Request
Fire Performance: ASTM E84 or GB/T8624-2012, GB/T 5464-2010, GB/T14402-2007.

Application

Office
Healthcare
Education
Transport
Retail

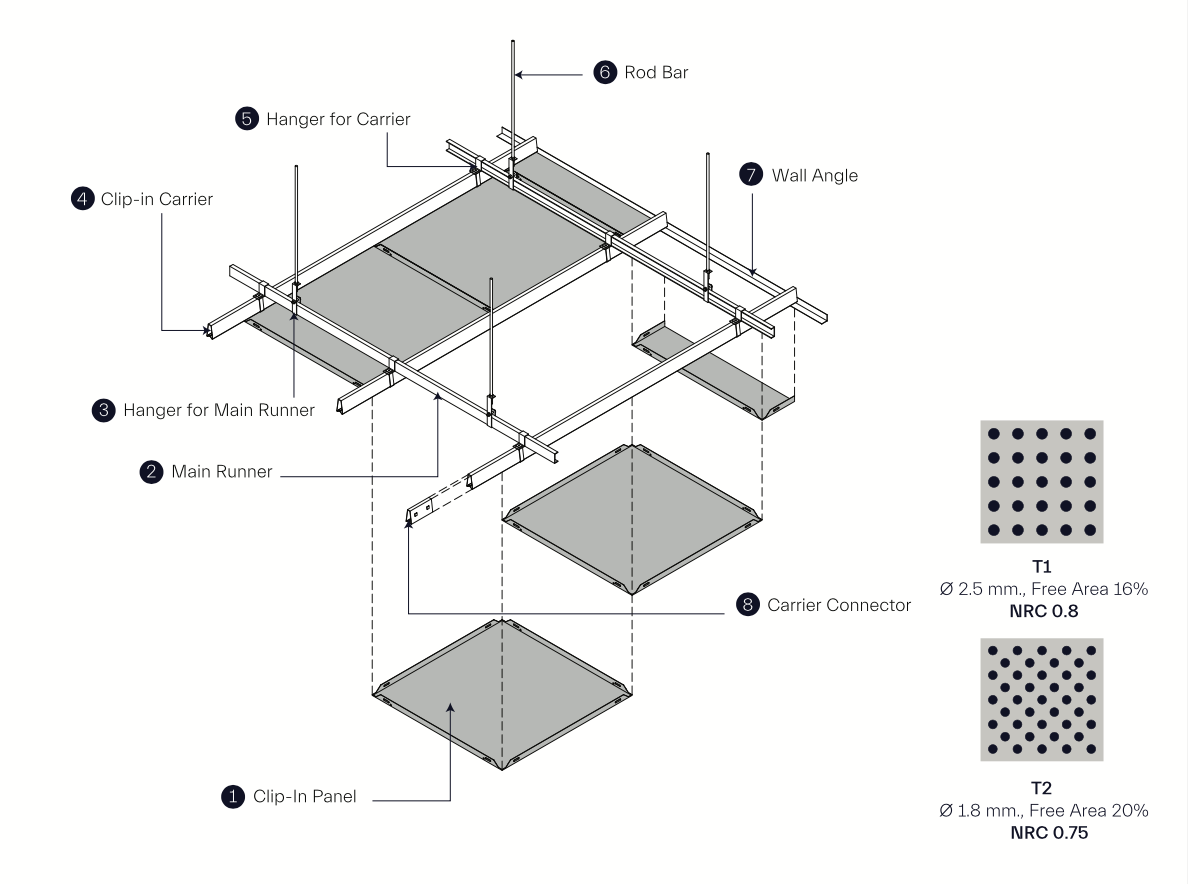

Perforation Patterns / NRC value

Non-Perforated
Ø 2.5 mm, 16% Free Area, Perforated T1 / NRC : 0.8
Ø 1.8mm, 20% Free Area, Perforated T2 / NRC : 0.75

*Perforated panels include acoustical ﬂeece.
