Hook-On | BFM Ceilings

ภาพลักษณ์เรียบเนียนต่อเนื่อง (Seamless Visuals) โครงคร่าวแบบซ่อน ช่วยให้ฝ้าเพดานดูเรียบหรู เป็นผืนเดียวกันอย่างสวยงาม

Benefits

Easier access to ceiling plenums.
Seamless Visuals: A concealed grid delivers a sleek, monolithic appearance.
Enhanced Acoustics: Enjoy effective sound absorption for improved comfort.
Effortless Installation.

Product Information

Material: Aluminum Alloy
Dimensions (mm): 300x600 / 400x600 / 600x600 / 400x1200 / 600x1200 / 600x1800 / 600x2400 (Other sizes available on request)
Thickness (mm): Starting from 0.8 mm up to a maximum thickness of 3.0 mm
Paint System: Polyester Powder Coated / PVDF / Wood Effects Available by Request
Fire Performance: ASTM E84 or GB/T8624-2012, GB/T 5464-2010, GB/T14402-2007.

Application

Commercial office
Transportation Terminals like Airport Terminals ,Train Terminals , Bus Terminals
Hall and meeting room
Research and Testing laboratory

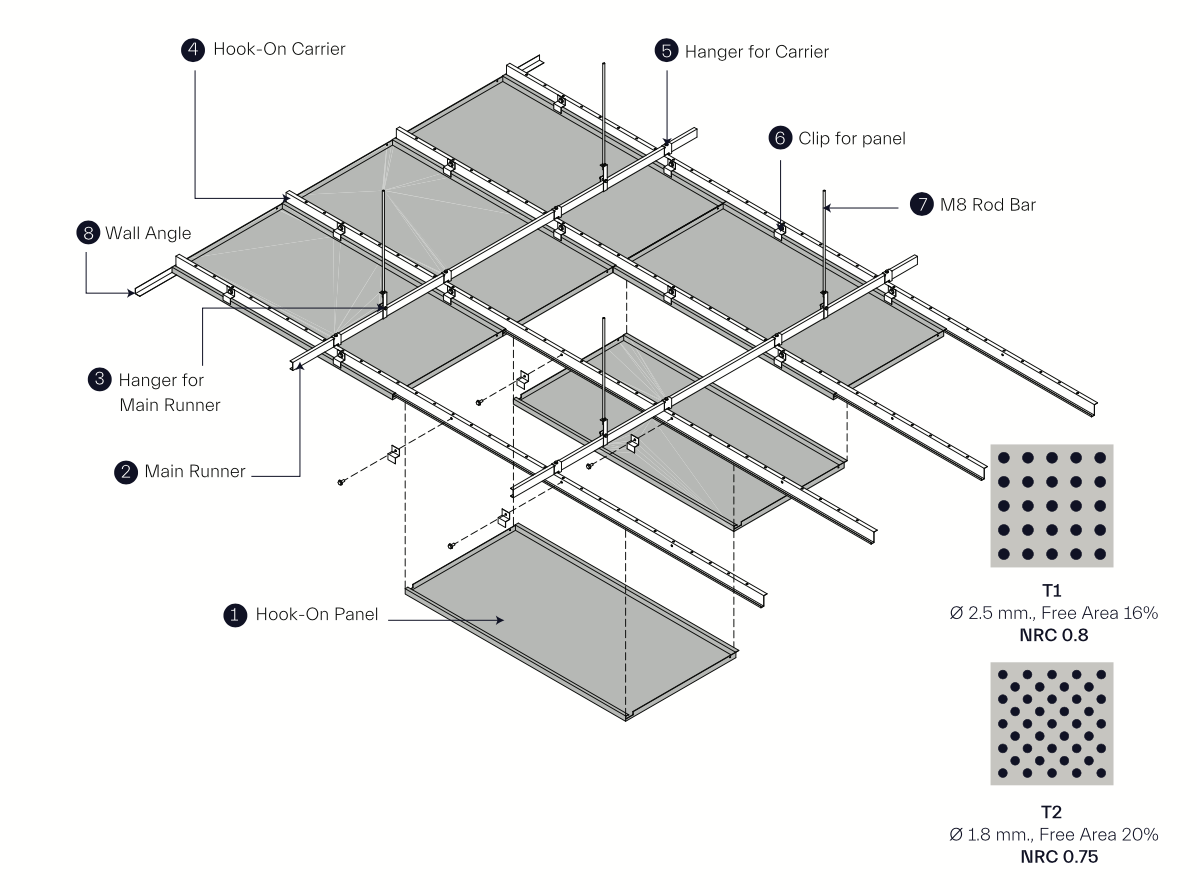

Perforation Patterns / NRC value

Non-Perforated
Ø 2.5 mm, 16% Free Area, Perforated T1 / NRC : 0.8
Ø 1.8mm, 20% Free Area, Perforated T2 / NRC : 0.75

*Perforated panels include acoustical ﬂeece.
