Fold Baffle

ดีไซน์เป็นแผ่นพับ ช่วยสร้างมิติและความน่าสนใจให้กับพื้นที่

Benefits

  • Easy and Quick Installation.

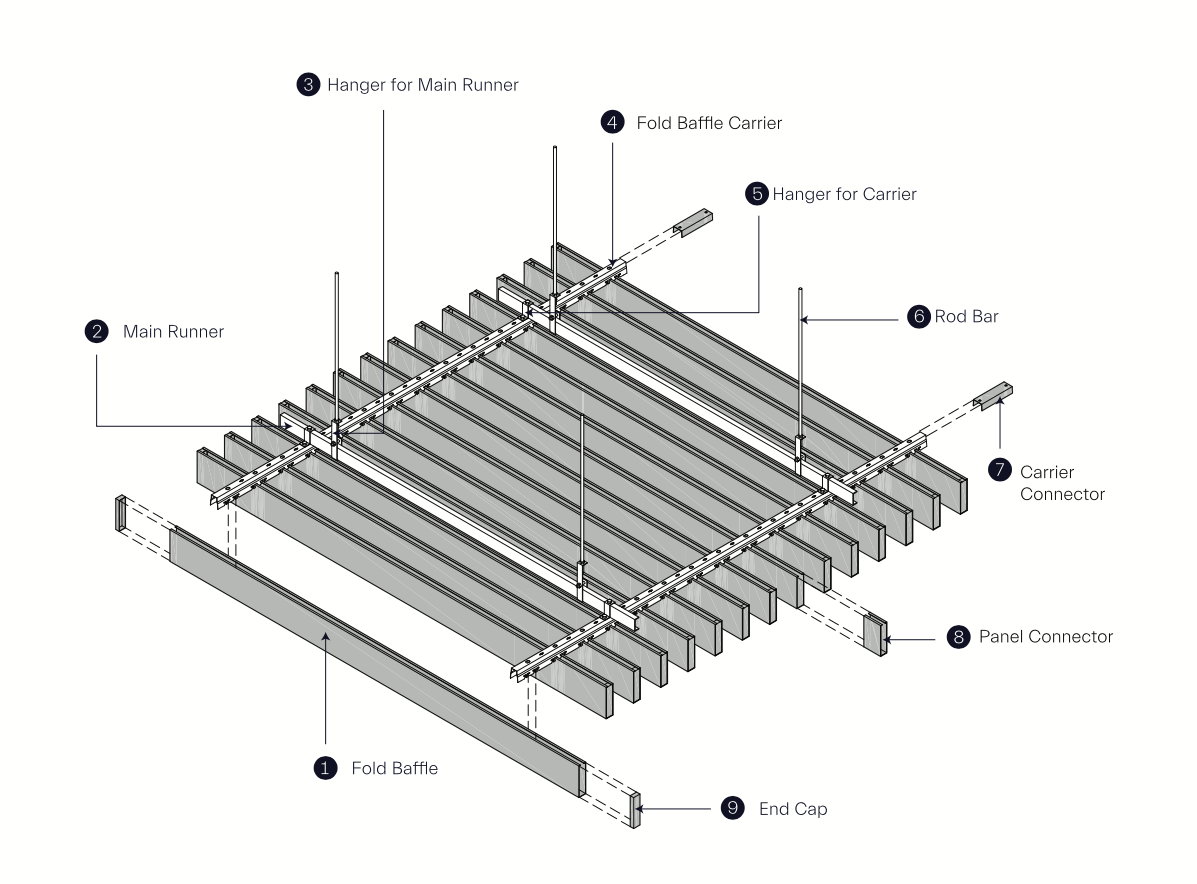

  • U-shape profile and standard hanging system.
  • Easy integration of lighting, air conditioning or other equipment into the ceiling space.
  • Aesthetic appeal with modern and open look.

Product Detail

Product Information

  • Material: Aluminum Alloy

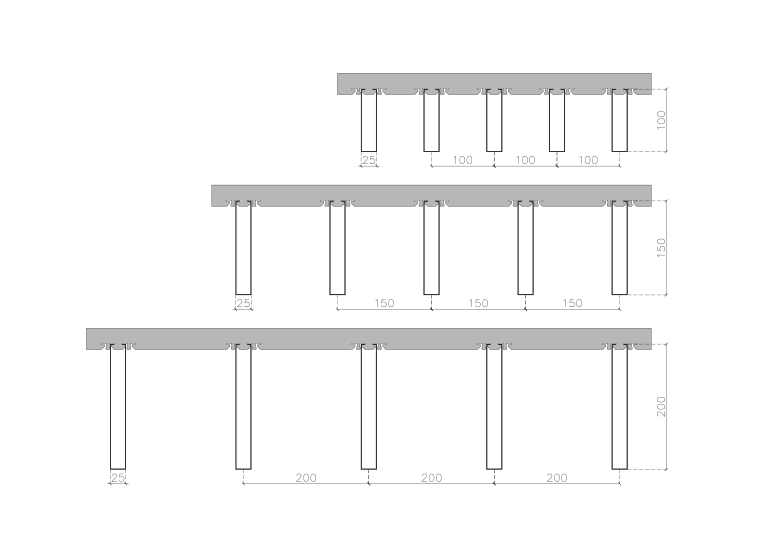

  • Dimensions (mm):  W25 x H 100 / W25 x H 150 / W25 x H 200
  • Spacing (mm): 100 /150 / 200
  • Thickness (mm):  0.7 / 0.8 / 1.0
  • Paint System: Polyester Powder Coated / PVDF / Wood Effects Available by Request
  • Fire Performance: ASTM E84 or GB/T8624-2012, GB/T 5464-2010, GB/T14402-2007.

Application

  • Home Office and Commercial office
  • Transportation Terminals like Airport Terminals ,Train Terminals , Bus Terminals
  • Hall and Lobby
  • Showroom

Perforation Patterns / NRC value

-
