Lay-In | BFM Ceilings

เหมาะสำหรับการติดตั้งแบบมาตรฐาน ใช้งานง่าย และเข้ากับระบบกริด T bar

Benefits

Sleek and contemporary appearance for a modern, sophisticated look.
Cost-effective solution without compromising on quality and design.
Compatible with standard grid systems, ensuring effortless installation and maintenance.
Easy access to the plenum space for convenient system adjustments.
Excellent acoustical performance, enhancing sound comfort and ambiance.
Easy to clean, maintaining a fresh and polished look over time.
Available in both square and rectangular sizes to suit diverse design needs.

Product Information

Material: Aluminum Alloy
Dimensions (mm): 600 x 600 / 1200 x 600 (Other sizes available on request)
Thickness (mm): 0.8 / 1.0
Paint System: Polyester Powder Coated / PVDF / Wood Effects Available by Request
Fire Performance: ASTM E84 or GB/T8624-2012, GB/T 5464-2010, GB/T14402-2007.

Application

Office
Healthcare
Education
Transport
Retail

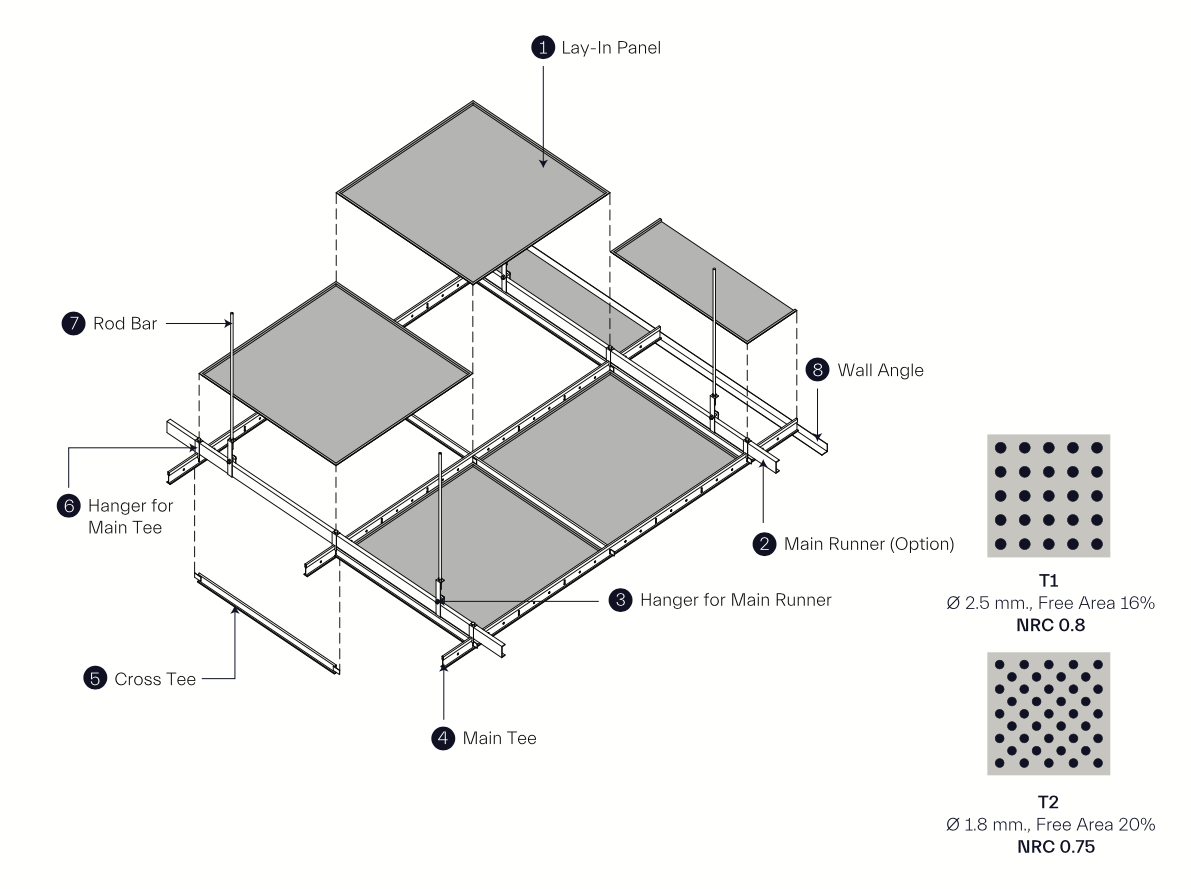

Perforation Patterns / NRC value

Non-Perforated
Ø 2.5 mm, 16% Free Area, Perforated T1 / NRC : 0.8
Ø 1.8mm, 20% Free Area, Perforated T2 / NRC : 0.75

*Perforated panels include acoustical ﬂeece.
