Open Cell

ออกแบบให้มีช่องว่างระหว่างแผ่น ช่วยเพิ่มการระบายอากาศและลดภาระน้ำหนักของฝ้า

Benefits

  • Effortless and quick installation.
  • Enhances the space with a sleek, modern, and open aesthetic.
  • Effectively conceals the plenum for a clean and polished appearance.
  • High open area (exceeding 80%) for optimal airflow and light penetration.

Product Detail

Product Information

  • Material: Aluminum Alloy
  • Blade width (mm): 10
  • Height (mm): 50

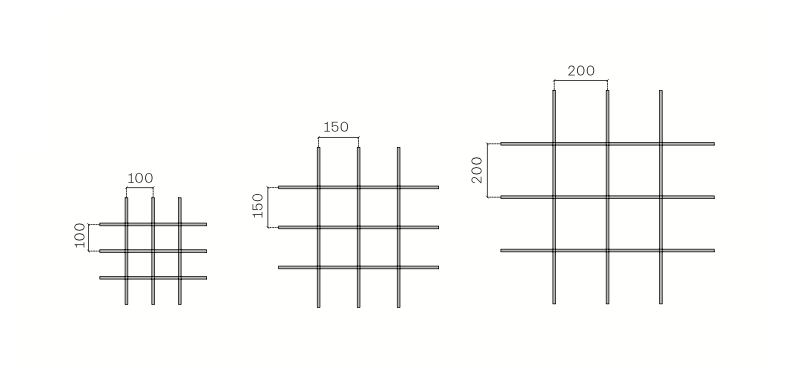

  • Cell Size (mm): 100 x 100 / 150 x 150 / 200 x 200
  • Thickness (mm):  0.5
  • Paint System: Polyester Powder Coated / PVDF / Wood Effects Available by Request
  • Fire Performance: ASTM E84 or GB/T8624-2012, GB/T 5464-2010, GB/T14402-2007.

Application

  • Reception and lobbies
  • Transportation Terminals
  • Restaurants and lounges
  • Office

Perforation Patterns / NRC value

-
